Spring-Loaded Spout Seal Assembly (PJP-003-000)

Spring-Loaded Spout Seal Assembly (PJP-003-000)

$2,760.00Price

Price Break (100+ Items)

Quantity

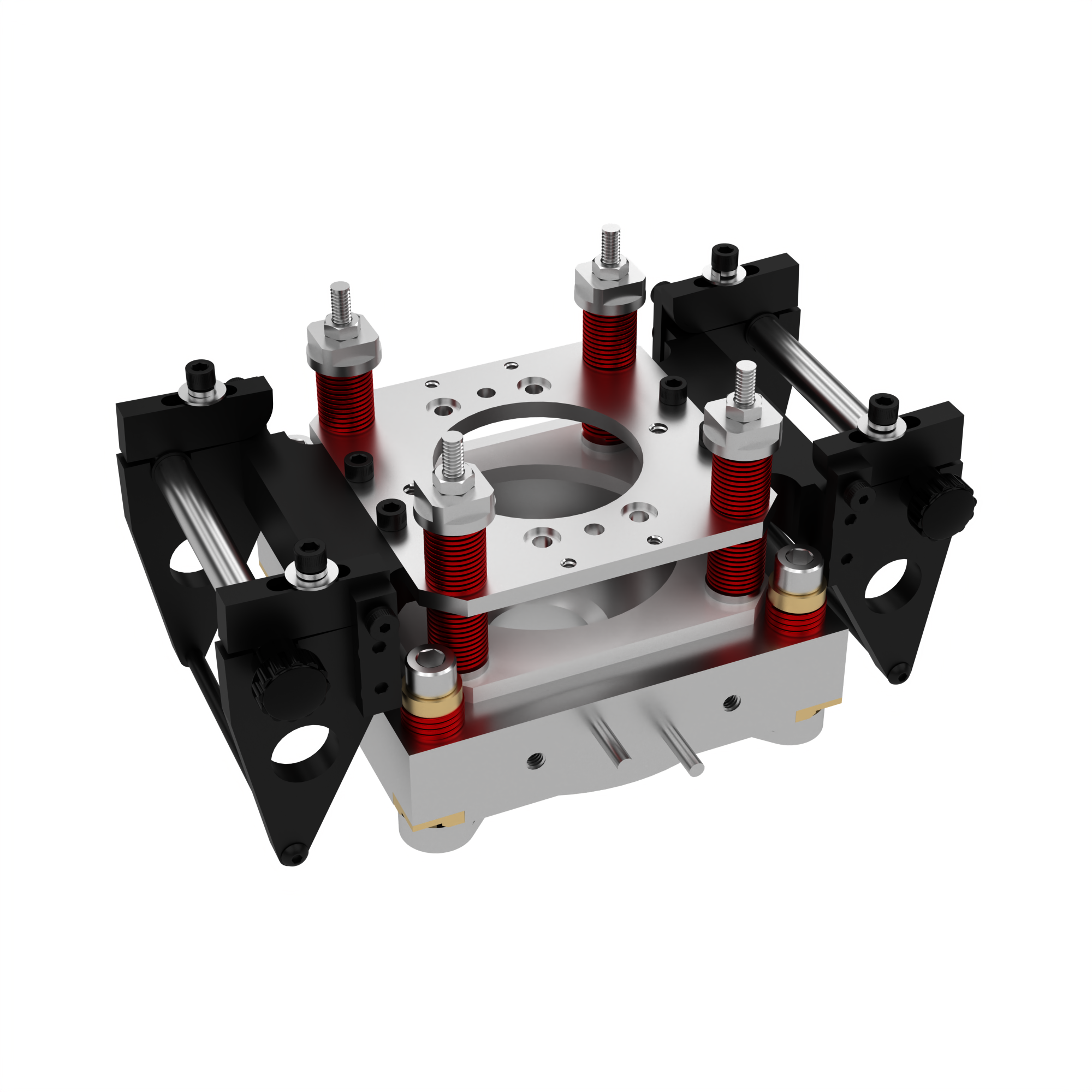

Complete Spring-Loaded Spout Seal Assembly, listed as PJP-003-000.


Use this listing to order the complete replacement assembly.

Individual OEM replacement components are also available through the Precision Jet Pak catalog.

Material: Mixed materials; see bill of materials.

Overall Dimensions: 10.163 × 5.993 × 7.025 in (X × Y × Z).


Bill of Materials

  • Qty. 1 — Cast Heater (PJP-003-001) — OEM replacement component

  • Qty. 4 — Wear Plate (PJP-003-002) — OEM replacement component

  • Qty. 1 — Seal Block Washer (PJP-003-003) — Reference only

  • Qty. 4 — Seal Block Insulating Washer (PJP-003-004) — Reference only

  • Qty. 4 — AS Raymond 203-404-000 Die Spring (PJP-003-005) — Replacement component available separately

  • Qty. 4 — Super-Corrosion-Resistant 316 Stainless Steel Socket-Head Screw, McMaster 92290A544 (PJP-003-006) — Reference only

  • Qty. 4 — Clamp (PJP-003-007) — OEM replacement component

  • Qty. 1 — Seal Block Insulator (PJP-003-010) — OEM replacement component

  • Qty. 4 — Support Stud (PJP-003-011) — OEM replacement component

  • Qty. 4 — Spring Locator (PJP-003-013) — OEM replacement component

  • Qty. 1 — Mounting Plate (PJP-003-014) — OEM replacement component

  • Qty. 4 — Spring Collar (PJP-003-015) — OEM replacement component

  • Qty. 8 — AS Raymond 104-404-000 Die Spring (PJP-003-016) — Replacement component available separately

  • Qty. 4 — Corrosion-Resistant 18-8 Stainless Steel Hex Nut, McMaster 91841A029 (PJP-003-017) — Reference only

  • Qty. 2 — Spout Seal Winder Assembly (PJP-003-018) — OEM replacement subassembly

  • Qty. 1 — Spout Seal Plate (PJP-003-033) — OEM replacement component

Components within the two Winder Assemblies

  • Qty. 2 — Winder Link (PJP-003-019) — OEM replacement component

  • Qty. 4 — Winder Side (PJP-003-020) — OEM replacement component

  • Qty. 4 — Pivot Plate (PJP-003-021) — OEM replacement component

  • Qty. 8 — Black-Oxide Alloy Steel Hex-Drive Flat-Head Screw, McMaster 91253A542 (PJP-003-022) — Reference only

  • Qty. 4 — Alloy Steel Shoulder Screw, McMaster 91259A534 (PJP-003-023) — Reference only

  • Qty. 4 — Lock (PJP-003-024) — OEM replacement component

  • Qty. 4 — Black-Oxide Alloy Steel Socket-Head Screw, McMaster 91251A548 (PJP-003-025) — Reference only

  • Qty. 4 — 18-8 Stainless Steel Split Lock Washer, McMaster 98437A110 (PJP-003-026) — Reference only

  • Qty. 4 — 18-8 Stainless Steel Washer, McMaster 92141A029 (PJP-003-027) — Reference only

  • Qty. 2 — Leveling Rod (PJP-003-028) — OEM replacement component

  • Qty. 4 — Button-Head Hex-Drive Screw, McMaster 91255A269 (PJP-003-029) — Reference only

  • Qty. 4 — External Retaining Ring, McMaster 97633A200 (PJP-003-030) — Reference only

  • Qty. 2 — Winder (PJP-003-031) — OEM replacement component

  • Qty. 4 — Black Phenolic Plastic Knob, McMaster 6479K81 (PJP-003-032) — Replacement component available separately


OEM replacement components, subassemblies, and designated replacement springs are available for individual purchase. Other standard hardware is included with the complete assembly and listed for reference only.
